Published

2025-03-31

Plotting with `pandas`

Justin Post

Let’s see the basic functionality that pandas provides for plotting Series (columns essentially) and DataFrames

Looking through the help files is really useful. This link is for the .plot() method but you can search for other methods pretty easily! The documentation will provide you all of the options you can pass. We’ll only discuss a few and the big picture ideas.

Let’s process our titanic data from the previous notebook.

Note: These types of webpages are built from Jupyter notebooks (.ipynb files). You can access your own versions of them by clicking here. It is highly recommended that you go through and run the notebooks yourself, modifying and rerunning things where you’d like!

import numpy as np
import matplotlib.pyplot as plt
import pandas as pd

#readin data
titanic_data = pd.read_csv("https://www4.stat.ncsu.edu/~online/datasets/titanic.csv")

#remove some columns and a bad row
sub_titanic_data = titanic_data.drop(columns = ["body", "cabin", "boat"], axis = 1) \
                               .iloc[:(titanic_data.shape[0]-1)]
#create category versions of the variables (some code omitted)
sub_titanic_data["embarkedC"] = sub_titanic_data.embarked.astype("category")
sub_titanic_data.embarkedC = sub_titanic_data.embarkedC.cat.rename_categories(
                                    ["Cherbourg", "Queenstown", "Southampton"])
sub_titanic_data["sexC"] = sub_titanic_data.sex.astype("category")
sub_titanic_data.sexC = sub_titanic_data.sexC.cat.rename_categories(["Female", "Male"])
sub_titanic_data["survivedC"] = sub_titanic_data.survived.astype("category")
sub_titanic_data.survivedC = sub_titanic_data.survivedC.cat.rename_categories(["Died", "Survived"])

Barplots with `pandas`

We saw the barplot for summarizing categorical data. We’ll cover two different methods to create bar plots in pandas:

.plot.bar() method on a series or dataframe
.plot() method with kind = 'bar' specified

table = sub_titanic_data.embarkedC.value_counts()
print(type(table))
table

<class 'pandas.core.series.Series'>

	count
embarkedC
Southampton	914
Cherbourg	270
Queenstown	123

dtype: int64

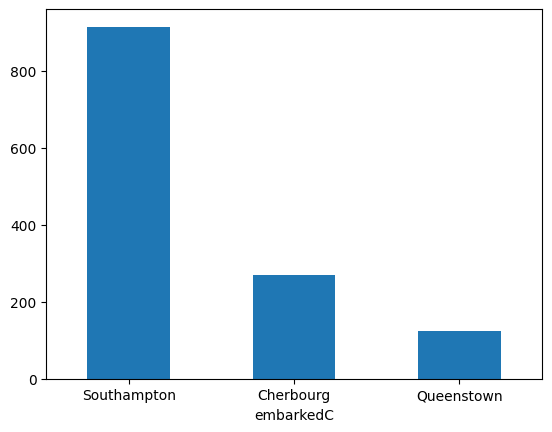

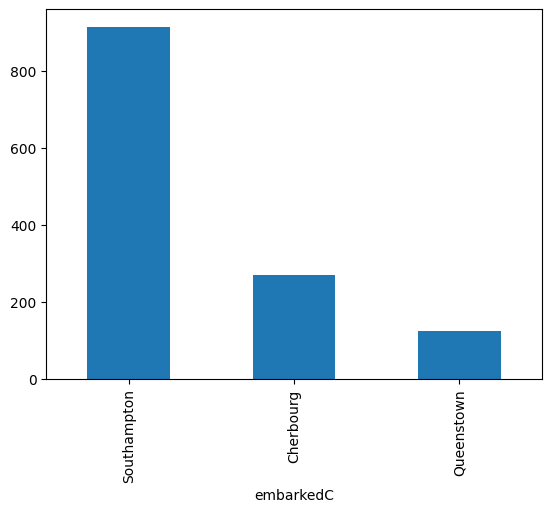

Note that this is a pandas series. We can use the .plot.bar() method on this series to get a bar plot.

table.plot.bar()

We can then apply the matplotlib functionality to update/modify the plot (notice we already read in matplotlib.pyplot as plt.

table.plot.bar()
plt.xticks(rotation = 0)

(array([0, 1, 2]),
 [Text(0, 0, 'Southampton'),
  Text(1, 0, 'Cherbourg'),
  Text(2, 0, 'Queenstown')])

Alternatively, we can use the slightly more flexible .plot() method on a series where we specify the kind= of the plot to create.

table.plot(kind = "bar", rot = 0) #can use additional arg rather than additional function call

Where we really gain is when trying to bring in a multivariate relationship

For instance, we can color the bars by another categorical variable in the DataFrame pretty easily!

First, create the contingency table for two variables (remember this returns a DataFrame)

table = pd.crosstab(sub_titanic_data["embarkedC"], sub_titanic_data["survivedC"])
print(type(table))
table

<class 'pandas.core.frame.DataFrame'>

survivedC	Died	Survived
embarkedC
Cherbourg	120	150
Queenstown	79	44
Southampton	610	304

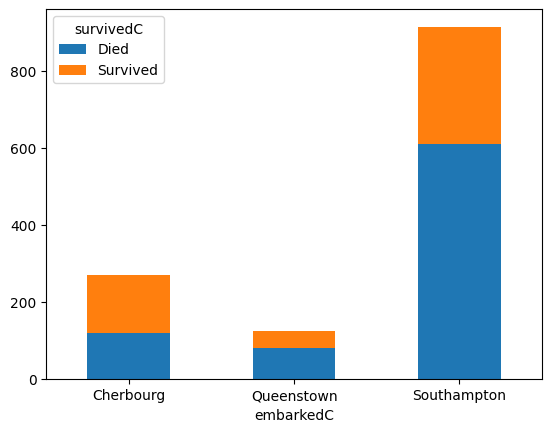

Now let’s use the .plot.bar() method on this DataFrame with the stacked = True argument.

table.plot.bar(stacked = True, rot = 0)

We can do this with the .plot() method as well.

table.plot(stacked = True, kind = "bar", rot = 0)

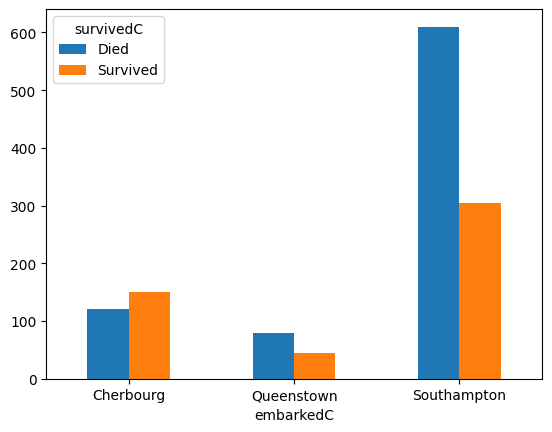

If we want side-by-side bar plots, we can just remove the stacked = True argument.

table.plot.bar(rot = 0)

Plotting Numeric Variables

Recall: Numeric variable have entries that are a numerical value where math can be performed

Goal: describe the shape, center, and spread of the distribution

Shape can be described well via a histogram or density plot
Boxplots provide a good summary of the distribution as well

Histogram with `pandas`

Histogram - Bin data to show distribution of observations - Done via .plot.hist() or .plot(kind = "hist") method on a series or data frame - A .hist() method also exists!

First, the .plot.hist() method on a series (we’ll also fix it up a bit using matplotlib.pyplot functionality.

sub_titanic_data["age"].plot.hist()
plt.xlabel("Age")
plt.title("Histogram of Age for Titanic Passengers")

Text(0.5, 1.0, 'Histogram of Age for Titanic Passengers')

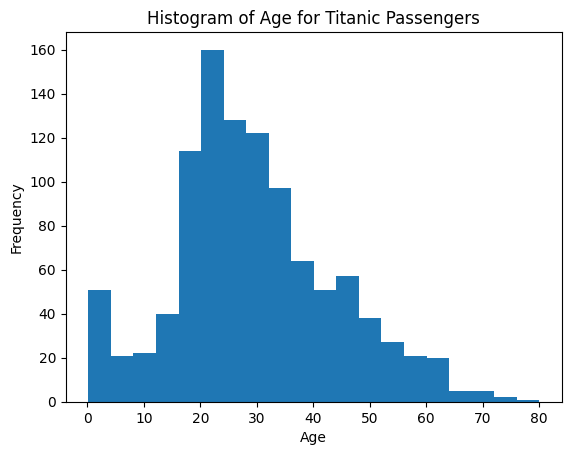

Specify # of bins with bins =
Note we also return the series in a different way here (just to show you can use either)

#can add label/title here (xlabel doesn't seem to work as intended...)
#instead we'll use the .set() method on the histogram to set the xlabel
sub_titanic_data.age.plot.hist(bins = 20, title = "Histogram of Age for Titanic Passengers") \
    .set(xlabel = "Age")

Overlaying Two Histograms

To overlay two histograms on the same graph, create two histograms and use alpha = 0-1 value. This sets the transparency.
- alpha = 1 is not transparent at all
- alpha = 0 is completely transparent

Let’s create histograms of age for those that Survived and those that Died. - We should also set up the bins manually so they are the same bin widths and locations (for better comparison) - bins can be specified via the bins = argument

bin_ends = 10
bins = [i*max(sub_titanic_data.age)/bin_ends for i in range(0, bin_ends + 1)]
print(bins)

[0.0, 8.0, 16.0, 24.0, 32.0, 40.0, 48.0, 56.0, 64.0, 72.0, 80.0]

Obtain subsets of data needed

age_died = sub_titanic_data.loc[sub_titanic_data.survivedC == "Died", "age"] #series for died
age_survived = sub_titanic_data.loc[sub_titanic_data.survivedC == "Survived", "age"] #series for survived

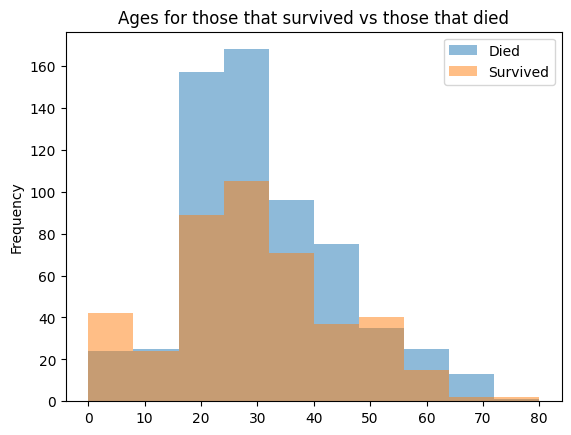

Create the plot using the .plot.hist() method. By creating two plots in the same cell, they will be overlayed. - Notice the use of label() to automatically create a legend (similar to what we did with matplotlib

age_died.plot.hist(bins = bins, alpha = 0.5, label = "Died",
                   title = "Ages for those that survived vs those that died") \
                   .set(xlabel = "Age")
age_survived.plot.hist(bins = bins, alpha = 0.5, label = "Survived")
plt.legend()

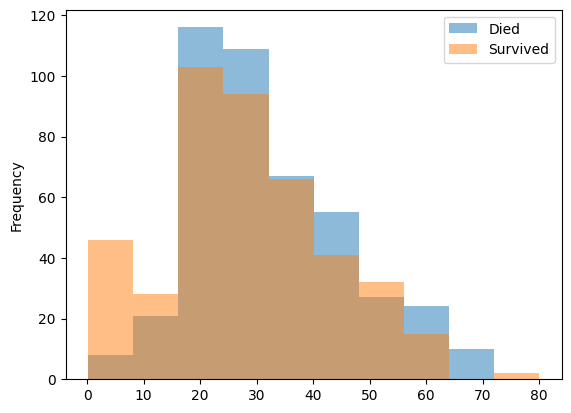

pandas will automatically overlay data from different columns of the same data frame
That is, if we use the plot.hist() method on a data frame with two numeric variables, it will plot both of those on the same plot
- To use that here we need to make that kind of data frame…
- Need two columns, one representing ages for those that survived and one for those that died

age_died = sub_titanic_data.loc[sub_titanic_data.survivedC == "Died", "age"] #809 values
age_survived = sub_titanic_data.loc[sub_titanic_data.survivedC == "Survived", "age"] #500 values

Note the difference in the number of observations! This means that putting them together into a data frame isn’t super seamless.

temp = pd.DataFrame(zip(age_died, age_survived), columns = ["Died", "Survived"])
print(temp.shape)
#only has 500 rows instead of 809!
temp.plot.hist(alpha = 0.5)

(500, 2)

How do we fix that?
- We can fill in NaN values for the shorter series so they end up the same length.

age_survived = pd.concat([age_survived, pd.Series([np.nan for _ in range(308)])])
age_survived

	0
0	29.0000
1	0.9167
5	48.0000
6	63.0000
8	53.0000
...	...
303	NaN
304	NaN
305	NaN
306	NaN
307	NaN

808 rows × 1 columns

dtype: float64

Now we can zip these together into a data frame and plot as we’d like!

plotting_df = pd.DataFrame(zip(age_died, age_survived),
                      columns = ["Died", "Survived"])
print(plotting_df.shape)
plotting_df.plot.hist(alpha = 0.5, title = "Ages for those that survived vs those that died") \
    .set(xlabel = "Age")

(808, 2)

Side-by-side Histograms

Can place two graphs next to each other with .hist() method (notice this is a different method!)
- Specify a column variable and a by variable
These don’t have the same bin widths

sub_titanic_data.hist(column = "age", by = "survivedC")

FutureWarning: The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
  sub_titanic_data.hist(column = "age", by = "survivedC")

array([<Axes: title={'center': 'Died'}>,
       <Axes: title={'center': 'Survived'}>], dtype=object)

We could also use the .groupby() functionality but the result is a bit subpar as it doesn’t label the graphs.

sub_titanic_data[["age", "survivedC"]].groupby("survivedC").hist()

FutureWarning: The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
  sub_titanic_data[["age", "survivedC"]].groupby("survivedC").hist()

	0
survivedC
Died	[[Axes(0.125,0.11;0.775x0.77)]]
Survived	[[Axes(0.125,0.11;0.775x0.77)]]

dtype: object

Kernel smoother with `pandas`

Kernel Smoother - Smoothed version of a histogram
‘Kernel’ determines weight given to nearby points
- Use .plot.density() or plot(kind = "density") method
- bw_method = # specifies how ‘smooth’ you want the graph to be
  - smaller values imply using a smaller bandwidth (more variability)
  - larger values imply using a larger bandwidth (more smooth)

sub_titanic_data.age.plot.density(bw_method = 0.1, label = "bw = 0.1",
                                  title = "Density Plots of Age for Titanic Passengers")
sub_titanic_data.age.plot.density(bw_method = 0.25, label = "bw = 0.25")
sub_titanic_data.age.plot.density(bw_method = 0.5, label = "bw = 0.5")
plt.legend()

Boxplots with `pandas`

Boxplot - Provides the five number summary in a graph
- Min, Q1, Median, Q3, Max
- Often show possible outliers as well
- Use .plot.box() or plot(kind = "box") method
- A .boxplot() method also exists!

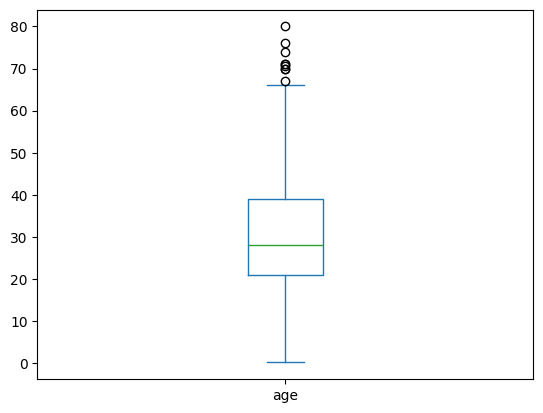

First the .plot.box() method on a series

sub_titanic_data.age.plot.box()

Fine.. but usually we want to compare these boxplots across another variable. To do this the .boxplot() method on a data frame is very useful!

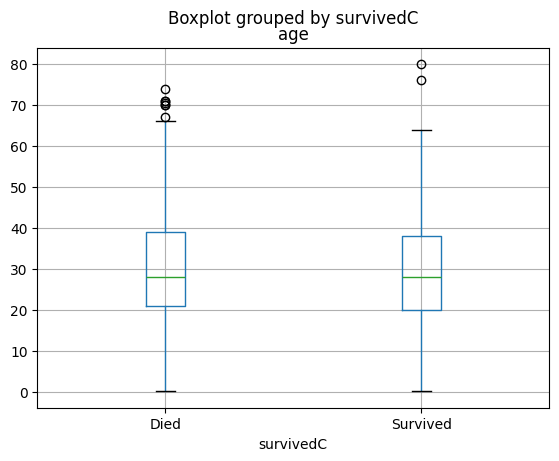

Similar to the .hist() method we specify a column and by variable

sub_titanic_data.boxplot(column = ["age"], by = "survivedC")

Scatter Plots with `pandas`

Scatter Plot - graphs points corresponding to each observation
- Use .plot.scatter() or plot(kind = "scatter") method on a data frame with x =, and y =

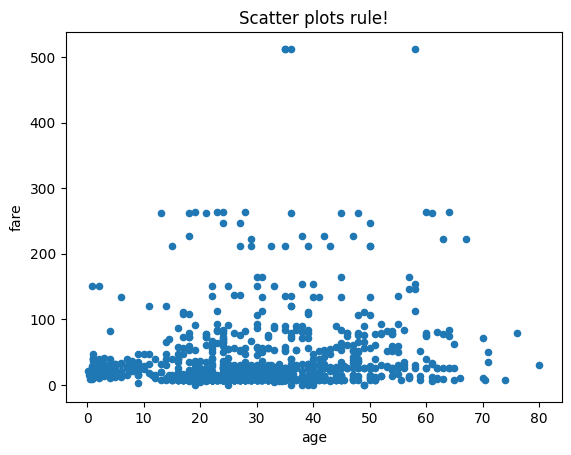

sub_titanic_data.plot.scatter(x = "age", y = "fare", title = "Scatter plots rule!")

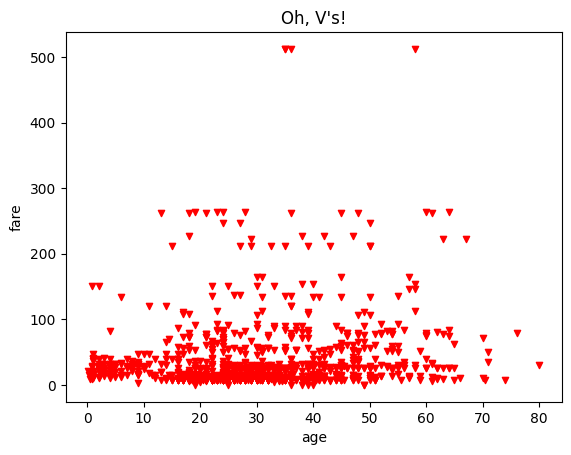

Easy to modify! Check the help for arguments (specifically the keyword arguments that get passed to .plot()) but we can specify different marker values, a title, and more!

#c = color, marker is a matplotlib option
sub_titanic_data.plot.scatter(x = "age", y = "fare", c = "Red", marker = "v", title = "Oh, V's!")

We can easily modify aspects of the plot based on a variable as well!
This is great as it allows us to bring a third varaible in
Here we color by a category variable

#s for size (should be a numeric column), cmap can be used with c for specifying color scales
sub_titanic_data.plot.scatter(x = "age", y = "fare", c = "survivedC", cmap = "viridis", s = 10)

Matrix of Scatter Plots

.plotting.scatter_matrix() function will produce basic graphs showing relationships!
Here we grab the numeric variables from the data frame

pd.plotting.scatter_matrix(sub_titanic_data[["age", "fare", "survived", "sibsp"]])

array([[<Axes: xlabel='age', ylabel='age'>,
        <Axes: xlabel='fare', ylabel='age'>,
        <Axes: xlabel='survived', ylabel='age'>,
        <Axes: xlabel='sibsp', ylabel='age'>],
       [<Axes: xlabel='age', ylabel='fare'>,
        <Axes: xlabel='fare', ylabel='fare'>,
        <Axes: xlabel='survived', ylabel='fare'>,
        <Axes: xlabel='sibsp', ylabel='fare'>],
       [<Axes: xlabel='age', ylabel='survived'>,
        <Axes: xlabel='fare', ylabel='survived'>,
        <Axes: xlabel='survived', ylabel='survived'>,
        <Axes: xlabel='sibsp', ylabel='survived'>],
       [<Axes: xlabel='age', ylabel='sibsp'>,
        <Axes: xlabel='fare', ylabel='sibsp'>,
        <Axes: xlabel='survived', ylabel='sibsp'>,
        <Axes: xlabel='sibsp', ylabel='sibsp'>]], dtype=object)

Quick Video

This video shows an example of using pandas for plotting. Remember to pop the video out into the full player.

The notebook written in the video is available here.

from IPython.display import IFrame
IFrame(src="https://ncsu.hosted.panopto.com/Panopto/Pages/Embed.aspx?id=f4e2bc16-1757-4f1e-8df9-b103016c97d2&autoplay=false&offerviewer=true&showtitle=true&showbrand=true&captions=false&interactivity=all", height="405", width="720")

Recap

Creating visualizations is an important part of an EDA
Goal: Describe the distribution
pandas has nice functionality for creating common plots
- .plot() method
We only covered a few plots but the concepts are similar for others
May want to check out seaborn for quick ways to do fancier plots!

If you are on the course website, use the table of contents on the left or the arrows at the bottom of this page to navigate to the next learning material!

If you are on Google Colab, head back to our course website for our next lesson!
